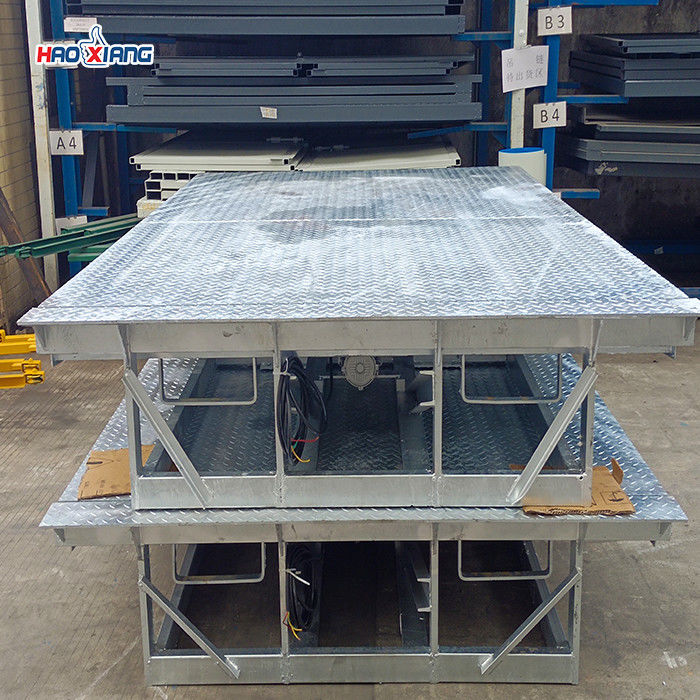

Electric 15T Steel Push Button hydraulic loading dock leveler
Product Description:
The installation dimensions of the Warehouse Dock Leveler are W1870mm*H2280mm*D500mm, making it a perfect fit for most standard loading docks. Additionally, the frequency of this dock leveler is 50Hz, but it can be customizable to meet the specific needs of your workspace.
With an electric power supply, this dock leveler is easy to operate and requires minimal maintenance. The lifting stroke of the dock plate ramp is +400mm/-300mm, allowing for a smooth transition between the dock and the truck. The control system of the Warehouse Dock Leveler is a simple push-button design, making it easy for your employees to use and understand.
Overall, the Warehouse Dock Leveler is an excellent investment for any warehouse or loading dock. Its durable construction and convenient design make it a reliable and essential piece of equipment for any business that deals with loading and unloading materials and products.
Features:
- Product Name: Warehouse Dock Leveler
- Frequency: 50Hz/Customizable
- Lip Thickness: 0.5 Inches
- Lip Length: 495mm
- Installation Dimensions: W1870mm*H2280mm*D500mm
- Power Supply: Electric
- Keywords: dock plate, Loading Dock Leveler, hydraulic dock plate
Technical Parameters:
| Pit Levelers |
Warehouse Dock Leveler |
| Rated Load |
8T-20T |
| Load Capacity |
15T |
| Warranty |
1 Year |
| Power Supply |
Electric |
| Lip Thickness |
0.5 Inches |
| Lip Length |
495mm |
| Operation |
Hydraulic |
| Voltage |
380V/Customizable |
| Installation Dimensions |
W1870mm*H2280mm*D500mm |
| Control System |
Push Button |
Applications:
This mechanical pit leveler is widely used in various industries, such as logistics, manufacturing, and construction. It is especially useful for businesses that require frequent loading and unloading of goods. The GTY15T-6X8 is easy to operate and can be customized to 380V or other voltage requirements.
The HAOXIANG GTY15T-6X8 is recommended for businesses that need to load or unload heavy equipment and machinery. It is also useful for companies that require fast and efficient loading and unloading of goods. The hydraulic Warehouse Dock Leveler is easy to install and operate, making it a cost-effective solution for businesses that require mechanical pit levelers.
Overall, the HAOXIANG GTY15T-6X8 is a reliable and efficient warehouse dock equipment that can help businesses streamline their loading and unloading processes. With its high load capacity, customizable voltage, and easy operation, this product is a must-have for any business that needs a reliable mechanical pit leveler.
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
sizes(mm) |
Load Capacity (t) |
Reserved pit size(mm) |
Adjust height(mm) |
| HX-GTY6×6 |
1830×1830×490 |
6-20T |
1870×1680×500 |
+400/-300 |
| HX-GTY6.5×6 |
1980×1830×490 |
6-20T |
2020×1680×500 |
+400/-300 |
| HX-GTY7×6 |
2130×1830×490 |
6-20T |
2170×1680×500 |
+400/-300 |
| HX-GTY6×8 |
1830×2280×490 |
6-20T |
1870×2280×500 |
+400/-300 |
| HX-GTY6.5×8 |
1980×2440×490 |
6-20T |
2020×2280×500 |
+400/-300 |
| HX-GTY7×8 |
2130×2440×490 |
6-20T |
2170×2280×500 |
+400/-300 |
| HX-GTY6×10 |
1830×3050×490 |
6-20T |
1870×2880×500 |
+400/-300 |
| HX-GTY6.5×10 |
1980×3050×490 |
6-20T |
2020×2880×500 |
+400/-300 |
