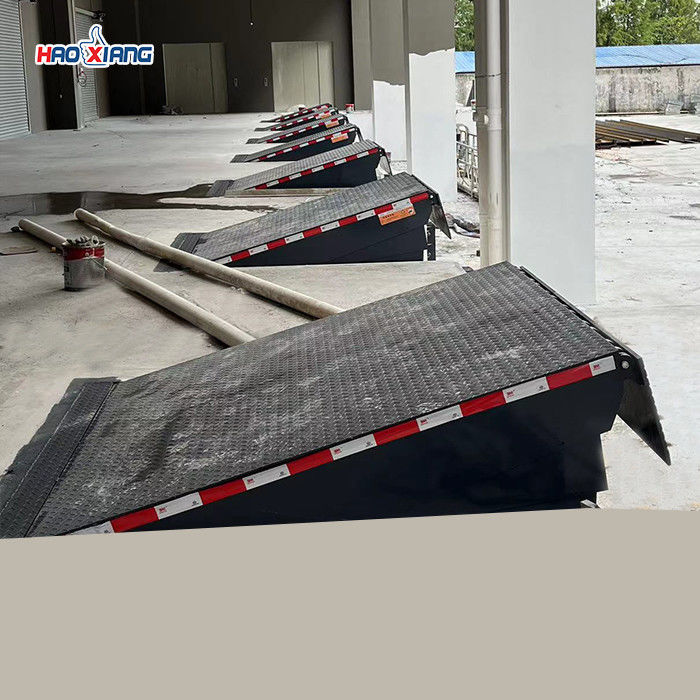

8-20 ton rated load warehouse loading and unloading platform
Product Description:
The hydraulic loading dock operates on a 380V/Customizable voltage and has a load capacity of 15T, making it ideal for heavy-duty applications. This loading dock is also equipped with a hydraulic system that provides a smooth and efficient operation. The hydraulic system ensures that the loading dock can be easily raised and lowered, providing a safe and efficient loading and unloading process.
The Stationary Dock Leveler is also designed to be extremely durable, with a rated load of 8T-20T. This means that it can handle heavy loads without bending or breaking. The loading dock is also constructed with high-quality materials that are resistant to wear and tear, ensuring that it will last for many years of heavy use.
When it comes to loading and unloading goods, safety is always a top priority. The hydraulic loading dock is designed with safety features such as non-slip surfaces and safety rails to prevent accidents. These safety features ensure that workers can load and unload goods safely and efficiently.
Another great feature of the hydraulic loading dock is its easy installation. The loading dock can be installed quickly and easily, with no need for extensive modifications to the warehouse. This means that businesses can start using the loading dock right away, without any major disruptions to their operations.
Overall, the hydraulic loading dock is an essential piece of equipment for any warehouse that needs to load and unload heavy goods. With its durable construction, efficient hydraulic system, and safety features, the Stationary Dock Leveler is the perfect solution for businesses that need to move goods in and out of their warehouse quickly and efficiently. Whether you are looking for warehouse dock plates or a heavy-duty loading dock, the hydraulic loading dock is the perfect choice.
Features:
- Product Name: Warehouse Dock Leveler
- Load Capacity: 15T
- Product size: W1830mm*H2280mm*D495mm
- Power Supply: Electric
- Installation Dimensions: W1870mm*H2280mm*D500mm
- Operation: Hydraulic
Introducing the Stationary Dock Leveler - the perfect solution for your dock leveler warehouse needs. With its hydraulic dock plate and impressive 15T load capacity, this Warehouse Dock Leveler is sure to make your loading and unloading operations a breeze. Designed with a product size of W1830mm*H2280mm*D495mm and installation dimensions of W1870mm*H2280mm*D500mm, this dock leveler is both compact and efficient. Powered by electricity, this hydraulic dock plate is easy to operate and maintain. Get your Stationary Dock Leveler today and streamline your warehouse operations!
| Technical Parameter |
| Specifications, sizes and colors can be customized according to customer requirements |
| Model |
sizes(mm) |
Load Capacity (t) |
Reserved pit size(mm) |
Adjust height(mm) |
| HX-GTY6×6 |
1830×1830×490 |
6-20T |
1870×1680×500 |
+400/-300 |
| HX-GTY6.5×6 |
1980×1830×490 |
6-20T |
2020×1680×500 |
+400/-300 |
| HX-GTY7×6 |
2130×1830×490 |
6-20T |
2170×1680×500 |
+400/-300 |
| HX-GTY6×8 |
1830×2280×490 |
6-20T |
1870×2280×500 |
+400/-300 |
| HX-GTY6.5×8 |
1980×2440×490 |
6-20T |
2020×2280×500 |
+400/-300 |
| HX-GTY7×8 |
2130×2440×490 |
6-20T |
2170×2280×500 |
+400/-300 |
| HX-GTY6×10 |
1830×3050×490 |
6-20T |
1870×2880×500 |
+400/-300 |
| HX-GTY6.5×10 |
1980×3050×490 |
6-20T |
2020×2880×500 |
+400/-300 |
